Scale Miter Gauge

£199.00   (Including VAT)

  • Expected to ship in December 2024
    Expected to ship in December 2024
  • Free Shipping Across the UK and All of Ireland
    Free Shipping Across the UK and All of Ireland
  • Secure Payment by Mollie Payment Service Provider
    Secure Payment by Mollie Payment Service Provider
  • 3-Year Warranty with Registration
    3-Year Warranty with Registration

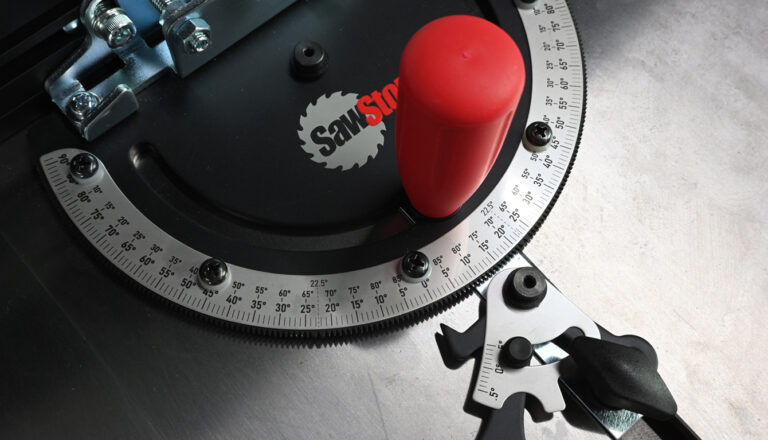

  • The precision protractor head features a pointer and 90 notches in 1° increments each side of 0°, including one for 22.5° on each side. In addition, the built-in Vernier scale gives you the ability to fine-tune any angle in 1/10° increments.
  • An 457.2mm (18”)-long miter bar, made to fit in common 9.52mm (3/8”) x 19.05mm (3/4”) miter slots, uses six adjustable washers to eliminate side-to-side wiggle in the miter slot while ensuring a smooth glide forward and back. A screw-on T-clip at the front of the bar holds the bar level in the miter slot when you pull the head off the table.
  • The aluminum fence provides a larger reference for holding workpieces accurately (compared to the head alone), with a telescoping extension that reaches up to 800.1mm (31-1/2”), 863.6mm (34”) with the flip stop). A T-slot in the front face provides a place to attach auxiliary wood fences with T-bolts. The scale on top of the fence can be calibrated to enable making precise crosscuts without having to measure and mark your boards.
  • Use the flip stop to make repeated cuts at the same setting for identical project parts. The flip stop indexes on the fence with a tooth-and-notch system that lets you position it in 0.79mm (1/32”) increments. The flip stop’s dual arms can be set independently at different lengths from the blade or linked together with a rod, all of which can be fine-tuned with a built-in micro-adjuster.
  • 90° left to 90° right
  • 9.52mm x 19.05mm x 457.2mm (3/8” x 3/4” x 18”)
  • 60.325mm (2-3/8”)
  • T-shaped – 19.05mm (3/4″) at top, 25.4mm (1″) at bottom, 0.37mm (3/8″) deep
  • 181
  • 463.55mm (18-1/4” retracted), 800.1mm (31-1/2” fully extended)
  • 2.81kgs (6.2 lbs)

Miter gauge with extendable fence (preassembled)
Dual flip stop
Reverse ruler for main fence
Reverse ruler for fence extension

  • Parts bag containing:
  • Grip
  • T-clip with screw (use with T profile miter gauge slot)
  • 3mm hex wrench
  • 5mm hex wrench
  • (2) 38mm steel rods
  • Spare parts bag containing:
  • (2) 12mm hex head screws w.
  • (2) washers
  • (2) rectangular nuts
  • (3) Miter bar expansion discs
  • (3) Miter bar fixed discs
  • (3) Hex head screws for use with expansion or fixed discs
